SummitX Mission Computer

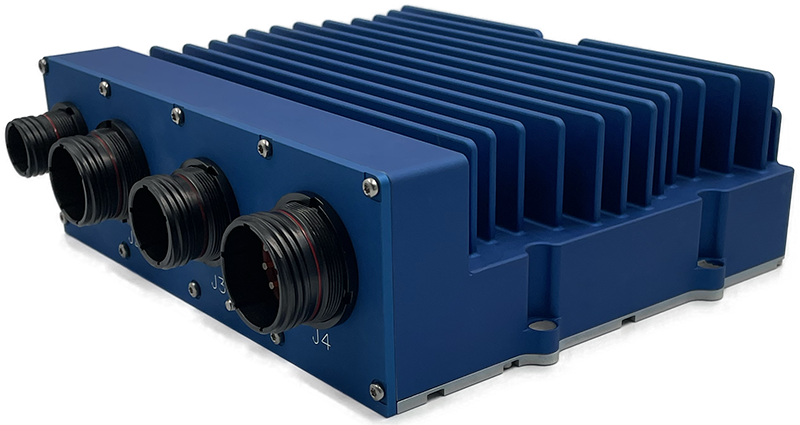

SummitX Family of mission computers

SWAP optimized edge computing

Elix Systems’ technology products bring the highest  level of situational awareness processing to aerospace and defense applications.

The SummitX product series are rugged, pre-qualified  mission computers  for mission-critical  applications that require the highest level of power for the optimum size and weight.

“Designed for  Safety” is an Elix Systems core competency. From the outset, SummitX have been engineered with DO-178C/DO-254 design safety rules, documentation and independent verification and  validation applied across the whole development process.

SummitX supports mixed safety-critical levels of HWCI and CSCI via  its multi-processor partitioned architecture.

SummitX solutions are available with all the documentation and  artifacts required for RTCA DO-178C/DO-254 certification up to level  C.

Mission Computer

Situational awareness powerhouse


The systems combine high-performance Intel CPU/GPU which can operate at maximum frequency on all cores and an  optional  Accelerated AI co-processor. This AI processor adds up to 28 TOPS of processing power, enabling simultaneous analysis and interpretation of simultaneous data from 4 video feeds or more.

Situational Awareness Powerhouse
Compact and versatile avionics

Compact and versatile avionics


With the ability to interact with commercial avionics interfaces connected  to various sensors to acquire and process data and share it over a network or other standard avionics buses, SummitX solutions feature all the core functions required for modern Integrated avionics  applications.

Most avionics computer configurations serve a specific purpose, each  requiring certain interfaces to the outside world. SummitX’s configurable  front-panel and COTS flavors covers a wide  range of commercial flight computers, display processors, and mission  computers. SummitX computers are designed to stack and communicate to offer various redundancy configuration and address the highest level of availability.

SummitX-2000

Advanced Edge Computing for Situational Awareness

Deliver superior situational awareness with our rugged, pre-qualified SummitX-2000 mission computer, engineered for AI applications and video fusion in commercial and defense settings.

SummitX-2000 Edge AI Mission Computer

Key Features

  • High Performance: Intel TigerLake processors with AI acceleration
  • Comprehensive Avionics Interfaces
  • 4x4 video switch matrix with up to 4x 1080p60 video capture
  • Rugged Design: Conduction-cooled chassis, with optional dual fan active cooling

Processor and Memory

  • Intel® 11th Generation Core™
  • i7-1185GRE, 4 cores, 1.8GHz – 4.4GHz
  • 16 GByte DDR4
  • 2×2 TB SSD (optional 2nd 2 TB SSD available)
  • Optional AI accelerator

Power

  • Dual 28V Power Supply Feeds
  • Hold-up 50ms
  • >40Watt

Interfaces

  • 4x ARINC 429 Tx and Rx for high and low speed
  • 4x RS232/422/485 configurable serial channels
  • 1x Gigabit Ethernet (1000BASE-T)
  • 1x 2.5 Gigabit Ethernet (2500BASE-T)
  • 1x USB 3.1 GEN1
  • 2x USB 2.0
  • 10x Discrete configurable I/Os
  • 4x 3G-SDI inputs & 4x 3G-SDI outputs

Environmental

  • Operating temperature -40°C to +70°C
  • Storage temperature -55°C to +85°C
  • Temperature variation DO-160 Cat B
  • Altitude MIL-810 25000Ft
  • Vibrations DO-160 Cat U
  • Operational shocks DO-160 Cat D
  • Crash safety DO-160 Cat E
  • Humidity DO-160 Cat B
  • Waterproofness DO-160 Cat W
  • EMI/RFI DO-160 Cat H/P

SummitX-2100

Next Generation AI Mission Computer

Best in class situational awareness, engineered for AI applications and multi-fusion in commercial and defense settings.

SummitX-2100

Key Features

  • Top Performance: Intel RaptorLake processors with AI acceleration
  • Comprehensive Avionics Interface: Supports multiple video and graphics processing options
  • Rugged Design: Conduction-cooled chassis, with optional dual fan active cooling

Processor and Memory

  • Intel® 13th Generation Core™
  • i7-13800HRE, 14 cores, 2.5GHz – 5GHz
  • 64 GByte LPDDR5
  • 2×2 TB SSD (optional 2nd 2 TB SSD available)
  • Optional AI accelerator

Power

  • Dual 28V Power Supply Feeds
  • Hold-up 50ms
  • >55Watt

Interfaces

  • 4x ARINC 429 Tx and Rx for high and low speed

  • 4x RS232/422/485 configurable serial channels

  • 2x 2.5 Gigabit Ethernet (2500BASE-T)

  • 1x USB 3.1 GEN1

  • 2x USB 2.0
  • 10x Discrete configurable I/Os
  • 4x 3G-SDI inputs & 4x 3G-SDI outputs

Environmental

  • Operating temperature -40°C to +70°C
  • Storage temperature -55°C to +85°C
  • Temperature variation DO-160 Cat B
  • Altitude MIL-810 25000Ft
  • Vibrations DO-160 Cat U
  • Operational shocks DO-160 Cat D
  • Crash safety DO-160 Cat E
  • Humidity DO-160 Cat B
  • Waterproofness DO-160 Cat W
  • EMI/RFI DO-160 Cat H/P

SummitX Lab Kit

develop without constraint

Avoid the inconvenience of using bulky breakout cables and the loss of valuable desk space. Developing mission software for rugged mission computers often involves complex setups that can be cumbersome and inefficient. To simplify this process, we offer desktop versions of our SummitX product family.

These desktop units replicate the functionality of our rugged mission computers in a compact form factor, making them ideal for development and testing purposes in a more accessible environment. They provide developers with the same advanced processing capabilities and interfaces found in the full-sized rugged versions, allowing for seamless software development and testing without the need for extensive hardware setups. This solution ensures that your development team can work more efficiently and effectively, directly from their desktop environments, while maintaining consistency with the final deployment hardware.

SummitX Lab Kit
SummitX Lab Kit specifications

SPECIFICATIONS


Processor and Memory

  • RS323/422, DSI / DSO, ARINC 429 over D-sub 50 commercial connector
  • RJ42 Lan interfaces
  • USB Type A USB 3.0 and USB 2.0 interfaces
  • HD-BNC SDI intefaces
  • Jack line in/out
  • Mini Circular DIN Connector  for GPS 1PPS signal

Maintenance and programming interfaces

  • Micro USB interfaces USB to UART trancievers for CPU, BMC and FPGA communication
  • Micro USB interface with USB to SPI transceiver for memory programming
  • JTAG connector for BMC programming
