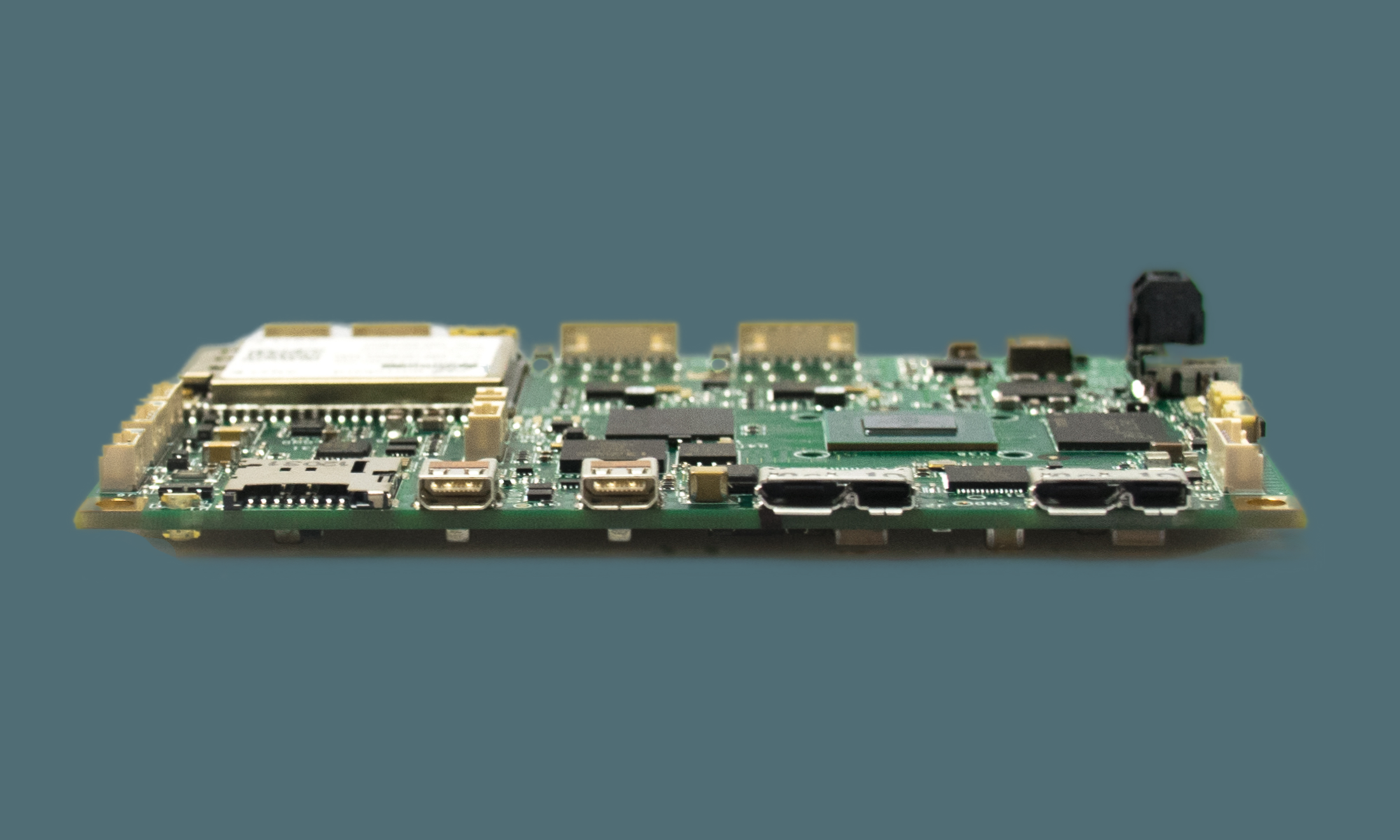

Comm-X
Video and Data Communication
Use Cases:
- Comm-X integrated in a Drone or Autonomous vehicle equipped with high-performance Camera: transmission of compressed video and navigation data between UAV and remote control or ground station
- Comm-X integrated with high-performance Camera in a surveillance systems: Video processing (threats identification, object tracking, etc…) and transmission of alerts and compressed video stream to surveillance platform.
High Performances Processing Unit
including Neural Accelerator
- NXP i.MX 8M PLUS
- Quad core Arm® Cortex®-A53 processor up to 1.6 GHz
- HI-FI4 DSP at 800 MHz
- Up to 2.3 TOPS
- Communication Module with H.265 encoding for efficient video transmission or storage
- The powerful AI video processor enabling local computer vision for object detection, collision avoidance
- Small package targeted (102mm x 75mm)
- DAL-D certifiable, certification package available on request
- Industrial temperature range (-40°C to 85°C)
- Power consumption: 15W typical
- Optional Microhard RF 2.4 Ghz module, 10W typical

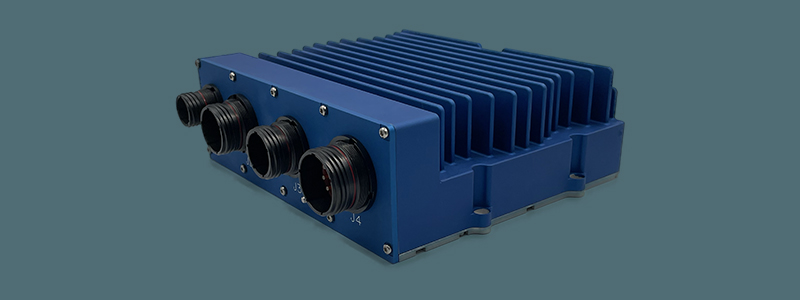

SummitX
Rugged Mission Computer
Use Cases:
- SummitX integrated into airborne geographical surveying provides real-time GIS mapping and data augmentation for mission support. The Intel® Iris® Xe Graphics provides power efficient and high performance graphics processing for precise and fluid rendering.
- SummitX as a platform for an electronic flight bag for flight-crew operational support. The integrated video matrix allows a seamless experience for crew members allowed by switching of different flight data sources onto the standard cockpit displays.
High Performance Intel® Core™ i7 Mission Computer
- 11th Gen Intel® Core™ i7 4x 1.8 GHz processor with Intel® Iris® Xe Graphics
- 4x4 3G SDI commutation matrix
- 4x 1080p60 simultaneos GPU/CPU video processing
- 2x 2.5Gb Ethernet interfaces
- Avionics Interfaces: 4x ARINC 429 rx/tx and 11xDSI/DSOs
- MIL-DTL-38999 rugged connectivity
- Natural Conduction/Convection Cooled
- -40 ̊C to +71 ̊C operating temperature
- Typical 45 Watt power consumption
Interfaces
- 4x4 3G SDI
- 2x 10/100/1000/2500 Ethernet Interfaces
- 8x A429 (4 TX, 4 RX)
- 4x RS422/RS232 configurable
- 11x DSIO
- 1x USB 3.1, 2x USB 2.0
- 2x redundant 28VDC Power
ARINC 818 IP
high bandwidth, low-latency
avionics video protocol
- Configurable ARINC818 IP: Rx only, Tx only, Rx/Tx
- IP wrapper for Gigabit Transceiver IPs
- Bidirectional flow control
- DAL: Certification package on request
Common Features
- Single- or dual-link e or Multi-Stream (< 4 streams per link, Line synchronous)
- Link speed up to 8.5 Gbps Supported video formats: Progressive
- Supported color formats: Monochrome, RGB, RGBA, RGGB, YIQ, YCbCr 4:2:2
-
Supported bit/byte packing modes
- 8-bit components, 4 components per Transmission Word
- 10-bit components, 3 components per Transmission Word
Transmitter specific features:
- Configurable header static fields
- “Prior Image CRC” computation and insertion
- Timing control: Embedded video timing generator operating in master or slave mode
Receiver specific features:
- Configurable header static fields
- ADVB frames format, CRC and “Prior Image CRC” verification
- Supported profiles: All profiles from B1 to D3
SummitX AI
- The most powerful AI video processor enabling local computer vision for target identification, object detection, collision avoidance.
- Flexible video input options for easy integration
- H.265 encoding, efficient codec for video transmission or storage
- DAL-D certifiable, certification package available on request
- Industrial temperature range (-40°C to 85°C)
- Dimensions: 149mm x 74mm
- Typical 30 Watt power consumption
NVIDIA Jetson Xavier NX Processing
- Up to 21 TOPS of Edge AI computing for Edge AI
- 384 NVIDIA CUDA cores, 48 Tensor cores
- 3x dual-core CPU clusters / six NVIDIA Carmel cores
- Up to 2x4K @ 60 H.265/HEVC decode
- Up to 2x4K @ 30 H.265/HEVC encode
Highly configurable Video Fabric
- Configurable I/Os:
- 4x 3Gb/s SDI input
- 1x ARINC 818 input
- 1x PCIe Gen 3 x8
- Video output
- 2x Display Port
- Data Links
- 2x Gb/s Ethernet
- 1x CAN bus
- 6x GPIOs
- Console
- 1x UART
- 1x USB 2.0
