SUMMITXL XM-1023

XMC analogue to digital video switch and frame grabber mezzanine enabling legacy video sensor integration into AI visions systems.

SummitX-2000 Edge AI Mission Computer

Key Features

  • PCIe Gen4x8 XMC for high throughput grabbing/injection
  • XFlex - 2x 5Gbps RX/TX for 3G SDI or ARINC 818



  • CVBS and RGB Analogue video grabbing
  • DAL-C certification package available

FPGA & Memory

  • Xilinx UltraScale XCKU060

  • 2GB DDR4

Video Interfaces

  • 2x RS-343 Input
  • 2x RS-343 Output
  • 3x CVBS Input
  • 1x CVBS Output
  • 1x HD SDI or ARINC 818 Input Input
  • 1x HD SDI or ARINC 818 Input Output

Other Interfaces

  • 2x UART

  • 1x I2C

  • 1x SPI

  • 8x GPIOs

Communication Interfaces

  • 3x USB 3.2 Gen1x1

  • 3x USB 2.0

  • 4x PEG Gen 3

  • 12x PCIe Gen 3

d

 Environmental

  • Operating temperature -40°C to +80°C
  • Storage temperature -55°C to +85°C
  • Altitude to 7600 meters
  • Vibrations DO-160G, Sect. 8.5, cat S (curve M),
    Sect. 8.8, cat R or U (curve G)
  • Humidity DO-160G, Section 6, cat B



  • Shocks and crash safety DO-160G, Section 7, cat B & E

  • Waterproofness DO-160G, Section 10, cat W

  • Sand and dust DO-160G, Section 12, cat D

  • Fungus DO-160G, Section 13, cat F

  • Salt spray DO-160G, Section 14, cat S

  • EMI conducted/radiated DO-160G, Section 21, cat H

ASK FOR A QUOTATION

Parylene Conformal Coating

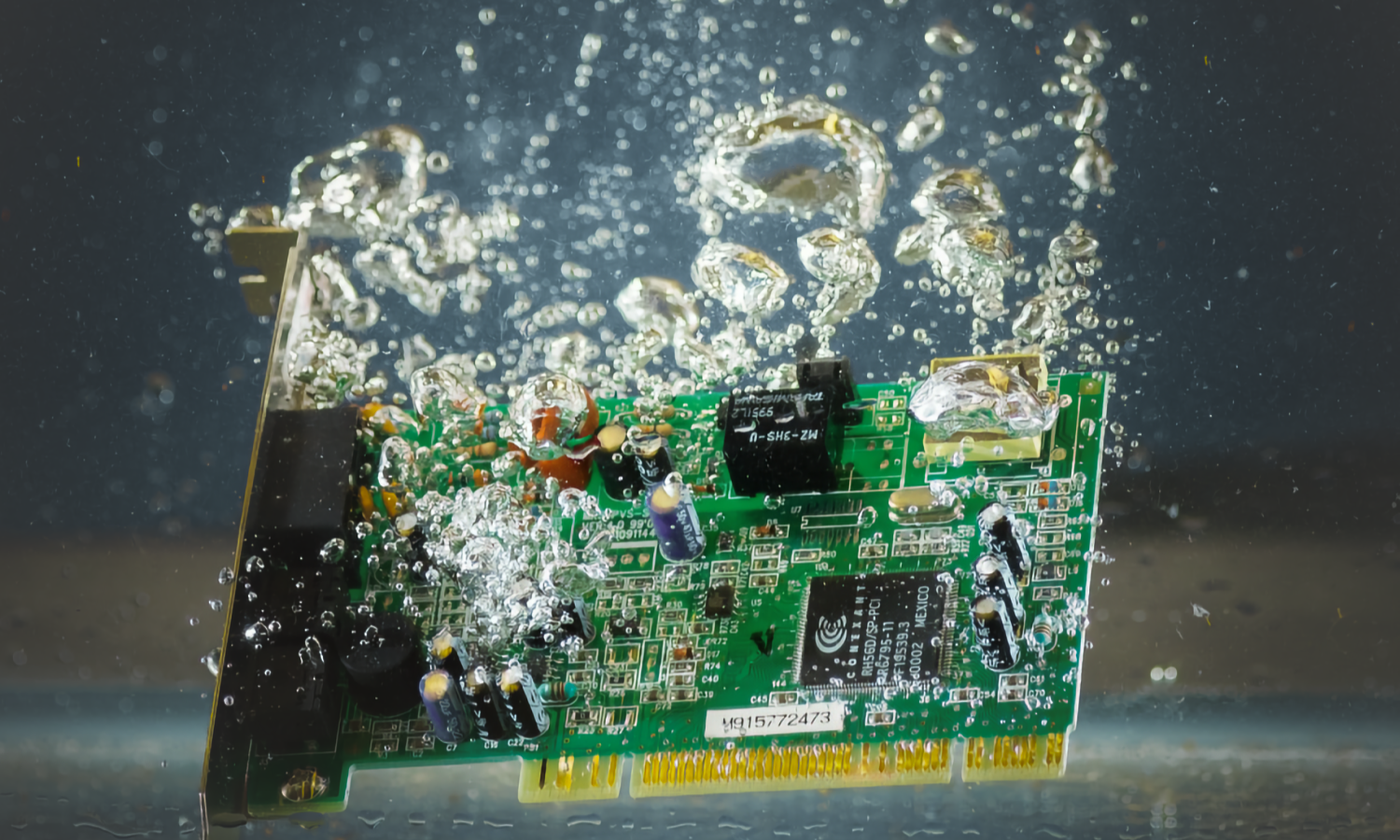

CVD (Chemical Vapor Deposition) enables ELIX Systems Circuit Board Assemblies to achieve ten times more hermetic resistance than epoxy resins. The CVD technology also reduces total system weight through mass reduction. Our COAT-X CVD conformal coating is tested to IPC-CC-830 & MIL-I-46058C standards.
